Switchboard & Consumer Mains Upgrade – Crows Nest
At Scott Electrics, we were recently engaged to complete a switchboard upgrade in Crows Nest at 156 West Street. The property’s old electrical setup was not only outdated but also unsafe and non-compliant with current Australian Standards. Our team carried out a complete electrical switchboard upgrade and consumer mains replacement to ensure the home was safe, efficient, and future-proof.
What We Found
During our inspection, it became clear that the existing installation presented several compliance and safety issues:

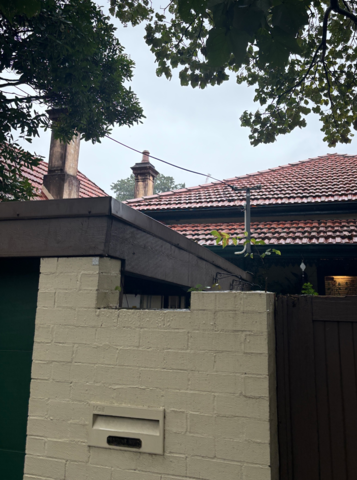

- The aerial service line was running too low over a metal roof, sitting below regulation height.
- Consumer mains were significantly undersized, with a capacity of only 32A – far below what a modern household requires.

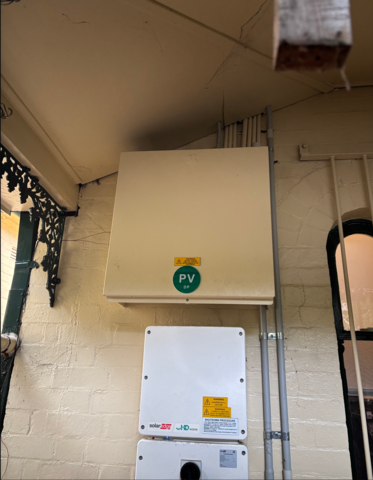

- The switchboard itself was installed more than 2 metres above ground level, breaching safety and accessibility standards.
These issues posed potential electrical hazards, created unnecessary limitations on power usage, and did not meet the standards required by Ausgrid or Australian regulations.
What We Delivered
Our licensed Level 2 electricians completed a full switchboard upgrade and consumer mains upgrade with the following solutions:

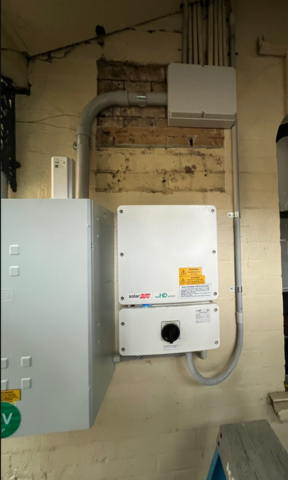

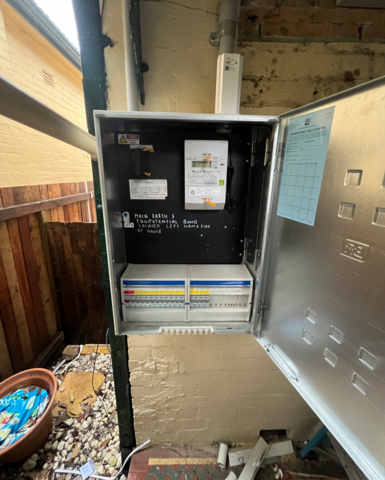

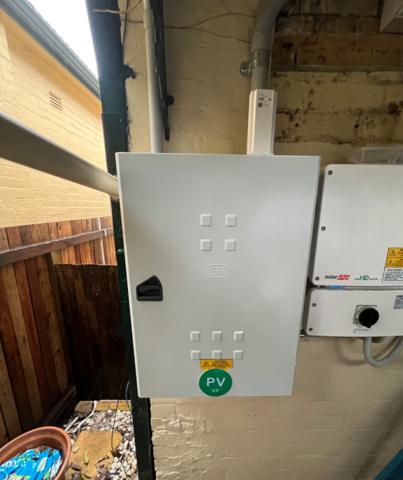

- Relocated and installed a brand-new main switchboard at a compliant and accessible height.

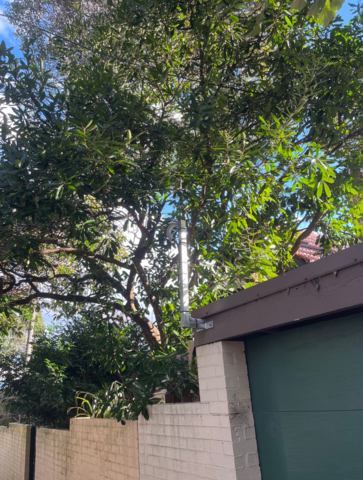

- Installed a new fascia bracket to achieve the correct aerial clearance.
- Replaced the aerial service with a new bundled cable to improve safety and durability.
- Upgraded the consumer mains to 25mm XLPE, increasing the load capacity to 80A – enough to meet modern household demand.
- Installed a single-phase smart meter that’s solar-ready and set up for future upgrades.
- Added RCBO safety switches for each circuit, providing enhanced protection against both overload and electric shock.
- Upgraded the earthing system and MEN connection for full compliance.
- Completed all Level 2 ASP works with Ausgrid approvals to ensure the property is connected safely and legally.
Why It Matters
This switchboard and consumer mains upgrade was about more than just compliance – it’s about protecting the home and preparing it for the future. The benefits of this project included:
- A fully compliant installation in line with Australian Standards.
- Safer aerial mains with correct clearances and a more durable service line.
- Increased power capacity to meet the needs of today’s households – from high-demand appliances to electric vehicle chargers.
- A solar-ready smart meter makes the home future-proof for renewable energy upgrades.
- Enhanced safety for residents through modern RCBO protection and an upgraded earthing system.
Solutions Delivered
Many Sydney homes still operate with outdated switchboards and undersized consumer mains, which can be both unsafe and restrictive. If your home has an old fuse board, struggles with power demands, or hasn’t been checked in years, it might be time to consider a switchboard upgrade Sydney residents can rely on.
At Scott Electrics, we specialise in:
- Switchboard upgrades for residential and commercial properties.
- Electrical switchboard upgrades that meet Australian Standards.
- Level 2 electrical works, including consumer mains upgrades and smart meter installations.
We combine compliance expertise with a commitment to safety and quality workmanship. Just like our project in Crows Nest, we can make sure your home or business is safe, efficient, and ready for the future.
